How to Design a Watch?

In today's highly competitive watch market, a successful watch product not only needs precise timing functions, but also unique aesthetic design, excellent craftsmanship and clear market positioning. As a professional OEM watch maker with 18 years of experience, Keypower Watch Factory understands that excellent watch design is a systematic project that requires comprehensive consideration from product positioning to detail polishing. This article will delve into the complete process of watch design, providing practical design references for brand owners.

Market Positioning: Starting Point of Watch Design

Before designing a watch, it is necessary to first clarify the market positioning of the product, which determines the direction of all subsequent design elements. DFM (Design for Manufacturing) is an advanced concept in modern product design. By considering manufacturing constraints during design phase, it can avoid costly errors, optimize material usage, and improve overall product performance. This concept also applies to watch design.

Material selection is a primary consideration in positioning. Currently, the main materials used for watch cases include stainless steel (904, 316L, 304), titanium alloy, zinc alloy, plastic, and specialized materials such as gold, silver, copper, and ceramic. Mid- to high-end brands typically choose 316L stainless steel or titanium alloy, which offer moderate hardness and mature processing technology. Lower-end brands tend to favor zinc alloy or plastic, which offer lower costs but a less premium feel. In recent years, emerging materials such as polycarbonate and bioceramics have also begun to attract attention.

Target audience directly influences the size and style of a watch. Men's watches in the European market are typically 42-45mm in diameter, while those in the Asian market are more suited to 40-42mm. Women's watch designs require slimmer dimensions and softer lines. Children's and senior watches have their own unique design requirements.

Movement choice is determined by its functional positioning. Mechanical movements are highly regarded for their sophisticated mechanical structure and traditional watchmaking craftsmanship. While luxury brands use in-house movements, most rely on standard, proven movements. Quartz movements, with their precise timing and low maintenance, remain an ideal choice for both fashion and entry-level models.

Usage scenario is also crucial. Dress watches require ultra-thin designs and leather straps; sports watches emphasize shock and water resistance; diving watches require a water resistance rating of 20ATM or higher; and outdoor watches are more suitable for lightweight nylon or rubber straps.

Brand DNA is the soul of design. Some brands have their own unique design elements. Brands like Rolex, AP, and Richard Mille all have distinct design languages. These unique case shapes and details constitute the brand's visual identity system.

Case Design: Bone and Soul of a Watch

Watch case is one of the most complex components of a watch. Modern watch cases generally adopt the Oyster structure, invented by Rolex in 1926, which not only protects the movement but also ensures water and dust resistance. Case design must balance both aesthetics and internal structure, a skill that requires extensive experience. KEYPOWER has its own design team, in general, clients provide a rough sketch or reference drawing, our design team will provide professional advice and work with the client to complete the case design through 2D and 3D drawings.

It's important to choose a case shape. Round cases are the easiest to machine, and the supporting parts (such as caseback, glass, and gaskets) are also the most readily available. While unusual shapes like square and tonneau-shaped cases are unique, they are significantly more difficult and expensive to machine.

Movement thickness influences case design. Mechanical movements are typically much thicker than quartz movements, with the exception of a few high-end, ultra-thin movements. Determining the movement type early in the design process ensures the appropriate space within the case.

Water resistance is subject to strict regulations. Generally, for water resistance below 10ATM, mineral glass and a snap-on caseback are acceptable; for water resistance above 10ATM, sapphire glass and a screw-on caseback are required. For water resistance above 20ATM, a screws fastened caseback is a must.

Movement Selection: Guaranteeing Precision and Reliability

Movement is the heart of a watch, directly impacting its performance and quality. Different brands of movement can be chosen for different quality levels. For example, for a three-hand quartz movement, a high-end watch might choose Swiss Ronda 763, a mid-range watch might choose Japanese Miyota 2035, and an entry-level watch might consider Japan Seiko PC21.

Nowadays Japan and Swiss movements are excellent in terms of precision and reliability. With proper daily maintenance, they're unlikely to experience any failures for three to eight years. As a watch manufacturer, KEYPOWER has provided customers with after-sales service for many years, and repairs due to movement quality issues are rare.

Additionally, when selecting a movement, consider long-term supply stability—whether production will be discontinued and price fluctuations—all crucial factors influencing the product's lifecycle.

Dial and Hands: Artistic Expression of Time

Dial is the most expressive part of a watch and the first thing consumers notice. While most dials are made of copper, some are made of exotic materials like wood, aluminum, gold, and meteorite.

Dial texture determines the aesthetics of a watch dial. High-end brands will conduct in-depth research on the texture of the dial, and use chemical etching, die stamping or CNC processing to create complex patterns; while low-end products usually use simple flat or sunray textures.

Color coordination influences the whole style of a watch. Dress watches often feature elegant white or black; fashion watches feature bold, vibrant colors; and sports watches tend to feature high-contrast designs for enhanced readability. Dial color should coordinate with other elements, including hands, indices, and strap.

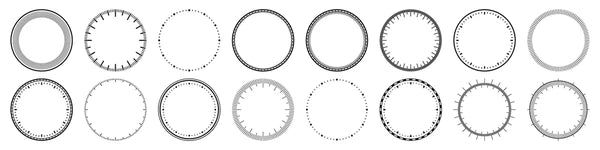

Index design is equally important. Bar-shaped scales are simple and modern, Arabic numerals are traditional and classic, Roman numerals are elegant and retro, and the minimalist design without scales has a more contemporary artistic feel.

Materials and processing of indices are quite diverse. Applied indices are made by individually cutting and forming metal materials and then fixing them to the dial by locating pins. They have a strong three-dimensional effect and luxurious texture, but they are the most expensive. UP indices uses molds to stamp metal sheets and then coats them, which creates a three-dimensional effect similar to that of applied indices, but it’s much easier and less expensive. Printed indices are the time scale pattern printed directly on the surface of dial, which has the lowest cost and high design flexibility. It can achieve complex patterns, color gradients, and other effects without increasing the thickness of the dial, making it particularly suitable for the design of ultra-thin watches.

Functional layout should balance aesthetics and practicality. Usually date window is located at 3 or 6 o'clock, sub dials of a chronograph need to be located properly, and luminous application enhances readability in the dark environments.

Watch hands needs to be consistent with the overall style. Willow-shaped hands are elegant and slender, suitable for dress watches; sword-shaped hands are strong and powerful, commonly seen on sports watches; baton-shaped hands are simple and modern, often used in fashion styles. The application of luminous coating improves readability in low-light conditions, which is particularly important for sports watches.

There are many watch hand factories in China, and each factory has thousands of watch hand designs to choose from. In most cases, existing styles are selected. If watch hands are customized, molds need to be made, which will increase time and cost.

Strap and Clasp: Perfect Combination of Comfort and Style

Strap, as a part of a watch that comes into direct contact with the skin, directly impacts the wearing experience. Metal bands are sturdy and durable, perfect for a casual look. Genuine leather straps (such as crocodile or calfskin) exude a luxurious feel and are the preferred choice for dress watches. Rubber or silicone straps are waterproof and durable, designed for sporty watches. Braided nylon straps lend a youthful, dynamic feel. Connection between strap and case lugs requires precise design to ensure both stability and aesthetics.

Some brands consider configuring two types of watch straps when designing: a metal strap in the summer to prevent it from getting dirty when the wrist sweats; and a leather strap or silicone strap in the winter to prevent the hands from being too cold when worn.

Buckle design cannot be ignored either.  Folding clasps are secure and reliable, often found on high-end models; pin buckles are classic and simple, suitable for most casual styles; and butterfly clasps offer a concealed aesthetic and elegance. Brand logo engraving on clasp is a crucial detail, enhancing the product's recognition. Regardless of the clasp type, it undergoes rigorous durability testing to ensure long-term reliability.

Finishing and Markings: Ultimate Expression of Quality

Refinement of a watch is often reflected in its attention to detail. Metal surface finishing process directly affects the texture performance of a watch. There are generally three types of metal surface finishing methods: polishing, brushing, and sandblasting.

Polishing is a manual process that creates a mirror-like shiny finish on the metal surface, creating a high gloss and luxurious feel. However, it is susceptible to scratches and requires regular maintenance. Brushing uses a sanding belt or wheel to create a unidirectional texture on the metal surface, creating a matte finish that effectively hides minor scratches, balancing practicality with an industrial aesthetic. Sandblasting uses high-speed micro particles to create a uniform matte finish on the metal surface, which is subtle in color, offers improved anti-fingerprint and anti-glare properties, and offers a rugged and durable look.

Stainless Steel Surface Finishings

(From left to right: sandblasted, polished, brushed finishing)

For high-end watches, attention to detail often distinguishes ordinary products from fine pieces. The higher the quality of the watch, the more demanding the polishing requirements for the metal parts. Lower-end watches, for example, often have less stringent polishing requirements. For example, zinc alloy watches often have a shiny finish on most metal parts.

IP plating, also know as PVD coating, is undergone on watch case and metal band after its surface finishing, which not only enriches color matching or a watch, but also increases hardness of the metal parts, thereby enhancing aesthetics and life of watch.

Watch markings are equally meticulous: laser etching is precise and meticulous, stamping is traditional and classic, and enamel filling highlights luxurious quality. Brand logo marking on watch crown and buckle, custom engraving on caseback, and custom printing on watch dial, these seemingly small elements together contribute to the overall quality of a watch.

Packaging and Accessories: A Complete Brand Experience

A complete product experience isn't limited to the watch itself, accompanying packaging and accessories are equally important. High-end wooden or leather boxes enhance the unboxing experience, while eco-friendly paper boxes embody the concept of sustainable development. Hang tags should include essential product information while also reflecting the brand's unique characteristics. Warranty cards should be anti-counterfeit and clearly state the warranty terms. Instructions manual should include both illustrations and text, and be available in multiple languages to meet the needs of different markets.

These accessories are not only functional items but also an extension of the brand image. Well-designed packaging can reinforce brand identity and enhance the product's perceived value in consumers' minds. Especially in the gift market, excellent packaging design can directly influence purchasing decisions.

Conclusion: Perfect Combination of Design and Manufacturing

Watch design is a creative process that requires collaboration from multiple parties. From initial conception to final product, every step requires expertise and extensive experience. As a professional OEM/ ODM watch company, KEYPOWER Watch Factory not only provides design advice but also ensures precise translation from blueprint to real product. Our advanced production equipment and technical team enable us to meet complex design requirements while ensuring consistent product quality.

Whether you're a startup or an established company, we offer customized solutions tailored to your specific needs. From design ideas to 2D and 3D drawings, from samples development to high-volume manufacturing, we look forward to collaborating with you to create stunning timepieces. Designing a successful watch requires both passion and expertise. Let us work together to turn your ideas into reality.
